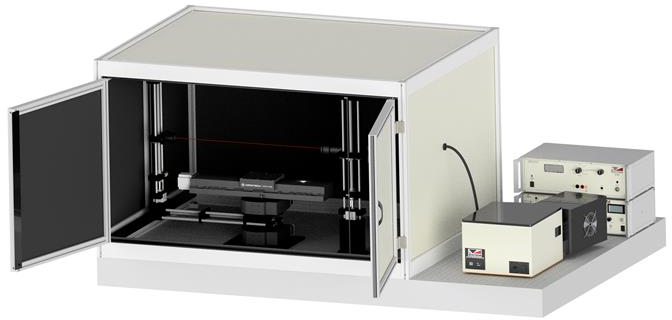

The HUD300 Gonio is a complete, versatile solution for analyzing the spectral transmission and reflectivity of various flat surface systems. Specifically optimized for Head-Up Display (HUD) applications, this instrument incorporates three-dimensional sample manipulation, allowing single or multiple flat surfaces to be mounted for testing complex optical geometries.
Through its motorized components, the HUD300 Gonio accommodates a wide range of real-life scenarios:
- An automatic detector positioning assembly with rotation and vertical displacement.
- A rotational and translational sample positioning assembly.
- A probe beam positioning stage with vertical displacement.
These features enable precise scanning in two distinct modes—Gonio Mode and HUD Mode—making the system adaptable to diverse measurement requirements.
Applications
- Head-Up Displays Test and optimize HUDs for automotive and military use, ensuring peak visual clarity and functionality.
- Optical Coatings Characterize antireflective, highly reflective, or other specialized coatings to assess performance.
- Color and Aesthetic Assessments Determine the spectral distribution of transmitted and reflected light to measure color impression, critical for architectural glass and other design materials.
In addition, studying reflected and transmitted light spectra provides insights into layer properties and interface effects in multilayer systems. Because reflectance and transmittance occur at every interface, the HUD300 Gonio enables comprehensive characterizations across multiple stacked layers.
Key Features
-
Transmission & Reflectance Calculations Accurately measure light transmitted through and reflected from various surfaces or multilayer systems.
-
Complete Angular Modeling Perform angular scans to capture comprehensive data and reveal nuanced optical behaviors.
-
Goniometric Precision Achieve precise rotational positioning for highly repeatable measurement results.
-
HUD-Like System Analysis Evaluate head-up display technologies used in automotive and military applications.
-
Primary & Secondary Mode Detection Seamlessly switch between Gonio Mode for broad analysis and HUD Mode for application-specific measurements.
-
Automatic Geometric Calculations Save time with integrated, automated geometry determinations based on instrument settings.
-
Single & Multi-Surface Setups Investigate both individual layers and complex, stacked optical systems.
-
Automated Result Generation Quickly generate and export measurement data in user-friendly formats.
Why Choose the HUD300 Gonio?
By integrating precision goniometric positioning, versatile sample handling, and tailored modes for both general gonio measurements and HUD-specific testing, the HUD300 Gonio stands out as a custom-made, reliable instrument that meets the multifaceted needs of modern optical research and product development.
